Key Features

• High-capacity 3450mAh lithium-ion cell for extended runtime
• Up to 10A maximum continuous discharge capability
• Button top design with integrated PCB protection
• High energy density in a compact 18650 format
• Designed for controlled, high-demand power applications

Overview

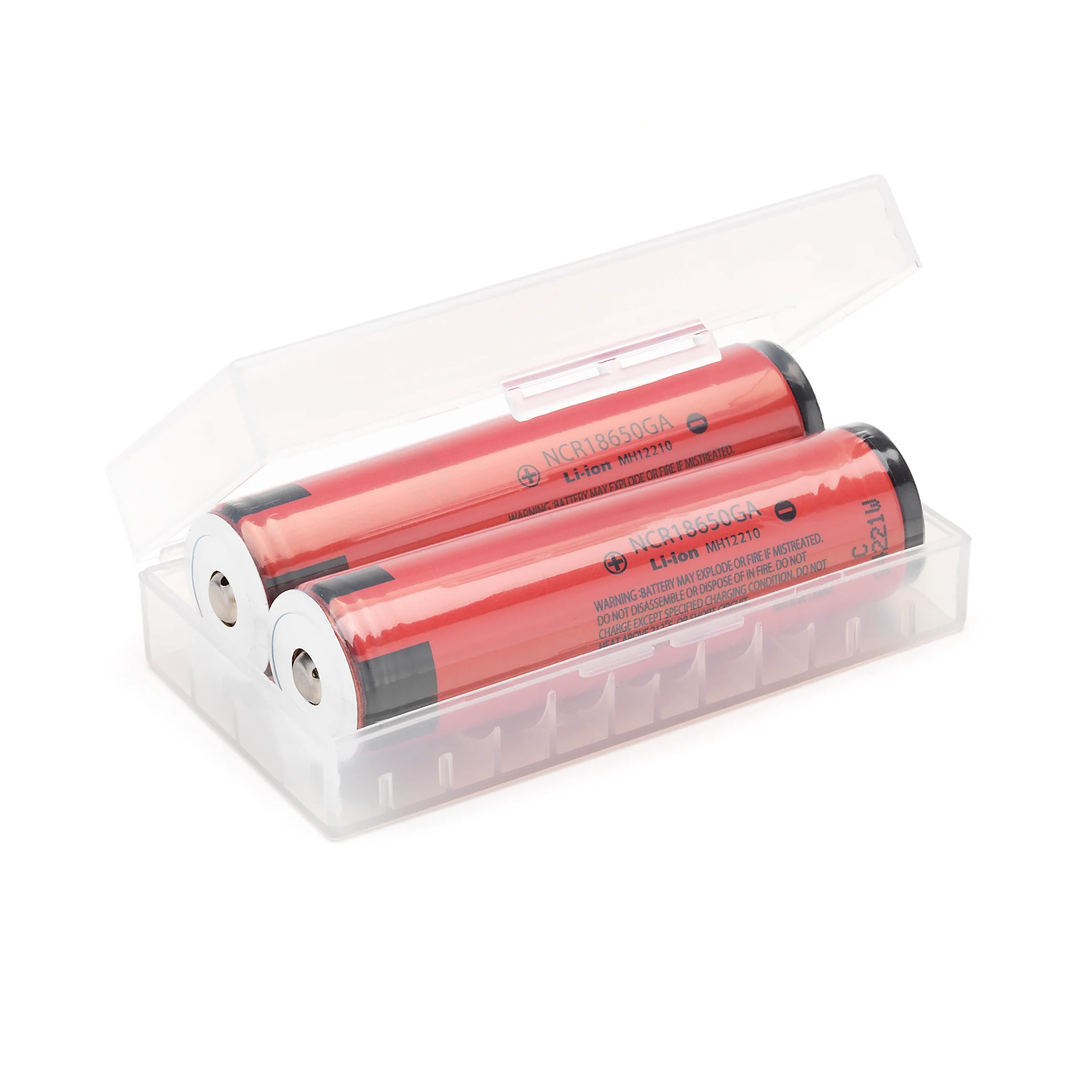

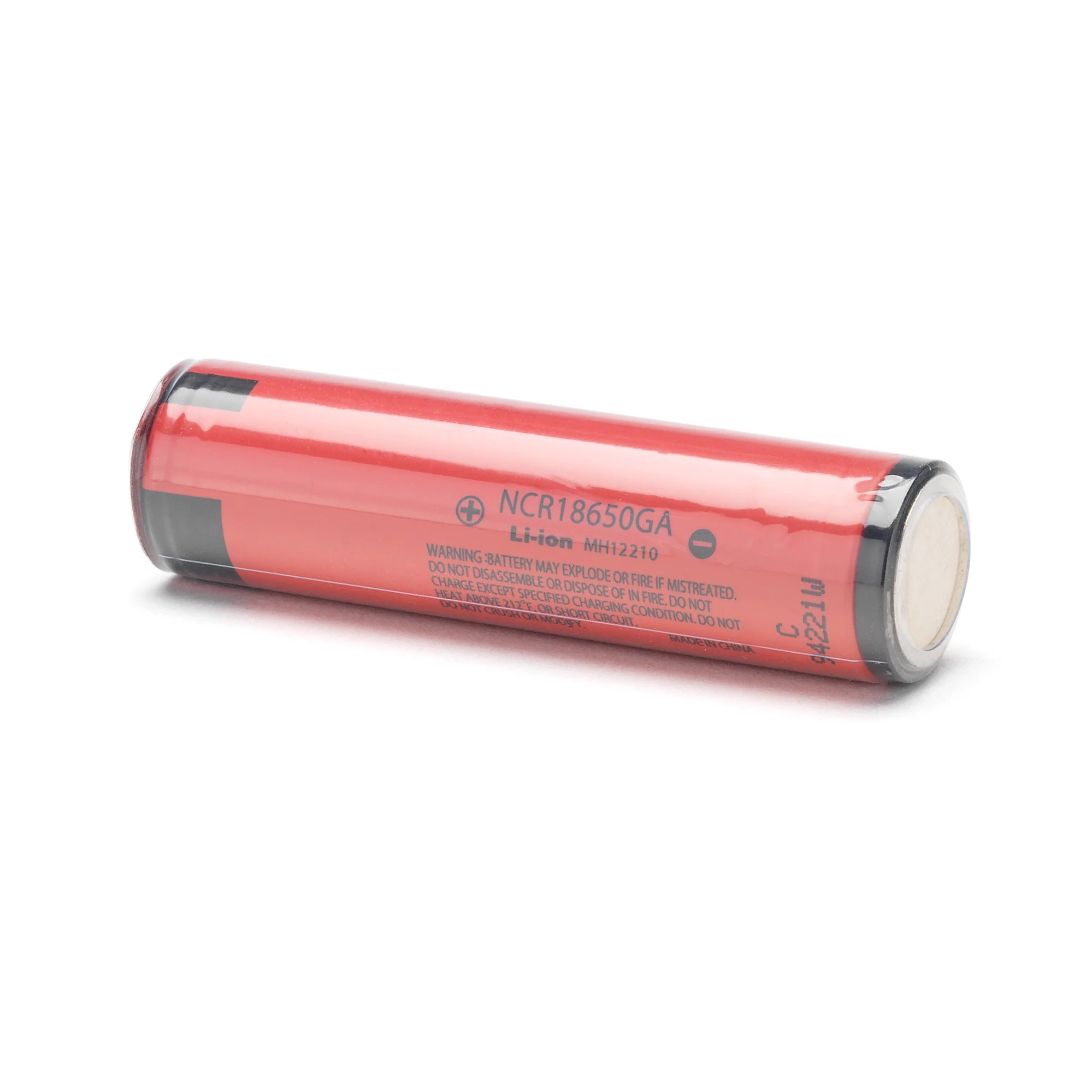

The Panasonic NCR18650GA is a premium high-capacity lithium-ion battery engineered to deliver dependable energy in demanding applications. Featuring a typical capacity of 3450mAh and support for up to 10A continuous discharge, this protected button top cell offers a strong balance of runtime and output. The integrated PCB enhances safety by providing controlled current limits and voltage protection, making it suitable for properly designed systems requiring stable and long-lasting power.

Note: This is a button top protected 18650 battery which is longer than a standard flat top unprotected 18650 battery.

Applications / Uses

• High-output flashlights and lighting systems
• Portable power stations and battery packs
• Power tools with regulated battery compartments
• Energy storage solutions
• Professional and industrial electronics

SPECIFICATIONS

Manufacturer:	Panasonic
Model:	NCR18650GA
Battery Size:	18650
Positive Terminal:	Button Top
Nominal Capacity:	3450mAh (typical)
Continuous Discharge Rating:	5A (PCB limit), up to 10A cell rating
Nominal Voltage:	3.6V
Maximum Voltage:	4.2V
Discharge Cut-off Voltage:	2.5V
Protected:	Yes, PCB
Rechargeable:	Yes
Approx. Dimensions:	18.5mm x 69.5mm
Approx. Weight:	49.4g
Data Specification Sheet:	Panasonic NCR18650GA Datasheet
