Key Features

• High-capacity 3450mAh lithium-ion cell for extended runtime
• 10A maximum continuous discharge for demanding applications
• Button top terminal for compatibility with select devices
• High energy density: 693 Wh/L volumetric, 224 Wh/kg gravimetric
• Wide operating temperature range from -20°C to +60°C

Overview

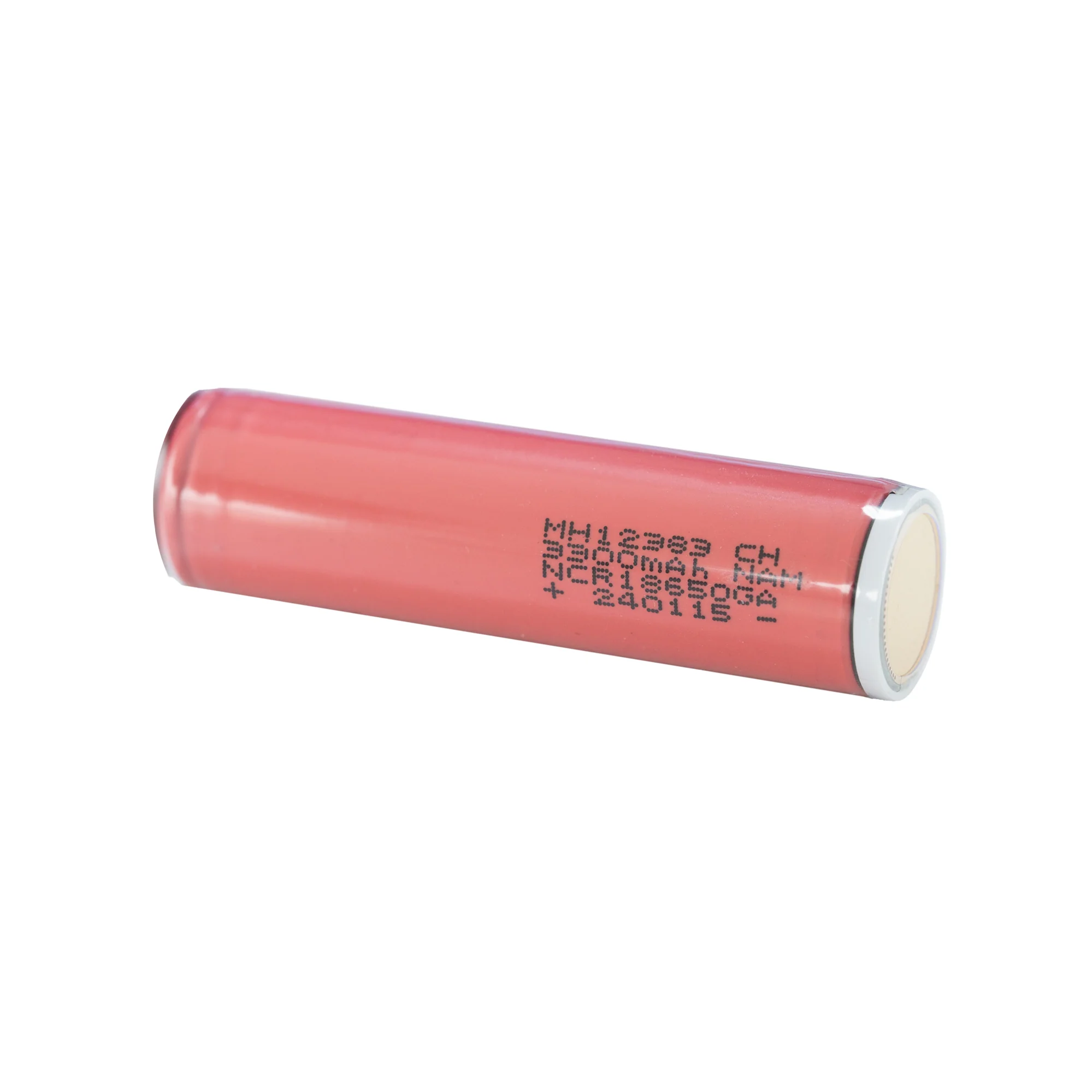

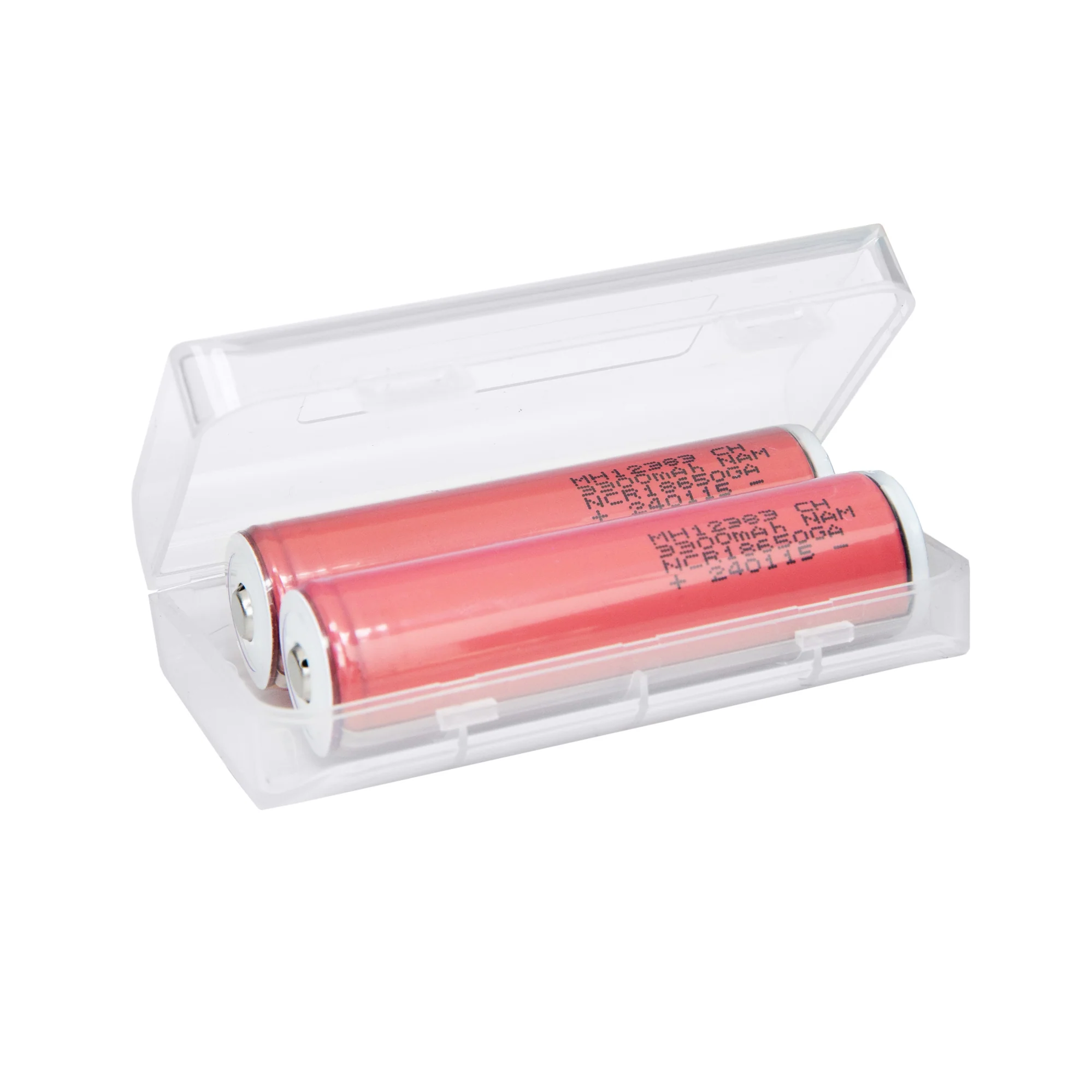

The Panasonic NCR18650GA is a premium high-capacity lithium-ion battery engineered for applications that require long runtime and stable power delivery. With a typical capacity of 3450mAh and a 10A continuous discharge rating, this cell strikes an excellent balance between energy density and output capability. This version features a button top terminal and is unprotected, making it suitable for devices or battery packs with built-in protection circuitry.

Applications / Uses

• Portable power tools with internal protection
• E-bike battery packs
• High-capacity battery assemblies
• Energy storage systems
• Professional-grade electronics

SPECIFICATIONS

Manufacturer	Panasonic
Model	NCR18650GA
Size	18650
Positive Terminal	Button Top
Nominal Capacity	3450mAh (Typical)
Continuous Discharge Rating	10A Maximum Continuous
Nominal Voltage	3.6V
Maximum Voltage	4.2V
Discharge Cut-off Voltage	2.5V
Protected	No, Unprotected
Rechargeable	Yes
Approx. Dimensions	18.5mm × 66.8mm
Approx. Weight	48.2g
Country of Origin	China or Japan
Data Specification Sheet	Panasonic NCR18650GA Datasheet
