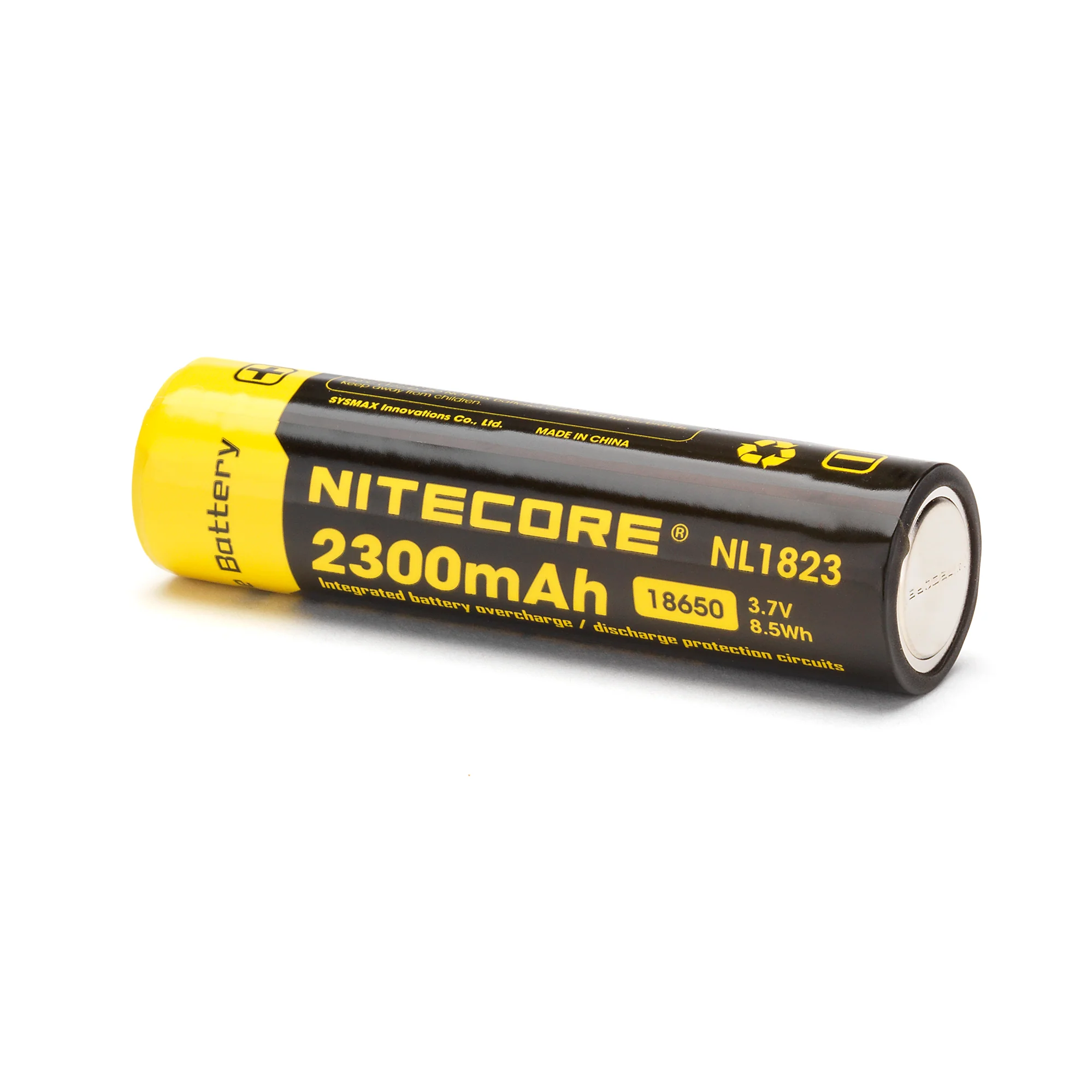

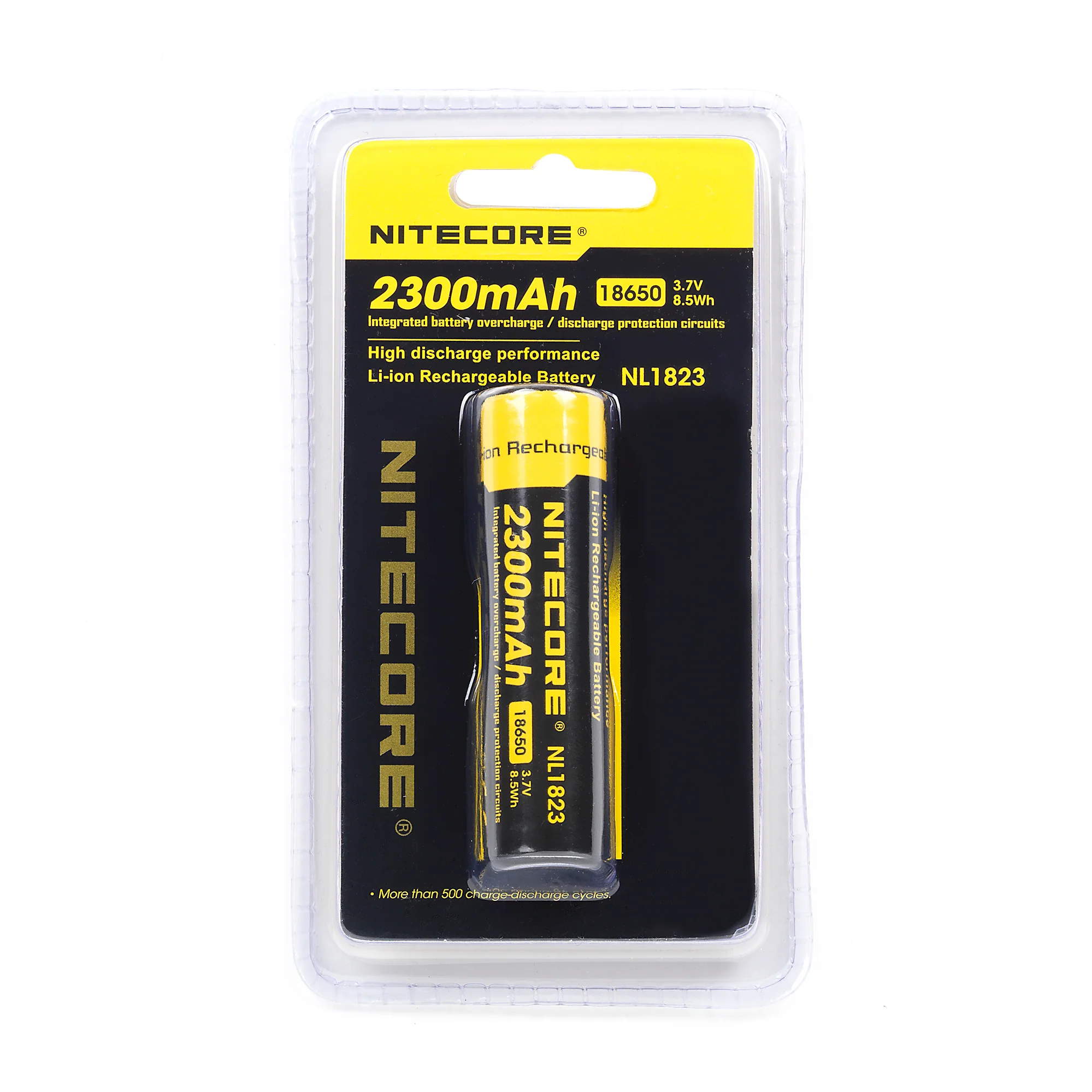

Nitecore NL1823 18650 2300mAh Battery - Protected Button Top
Key Features
- 2300mAh nominal capacity for stable runtime
- Integrated PCB protection for overcharge and over-discharge safety
- 6A continuous discharge limit controlled by protection circuit
- Button top terminal for protected-cell compatibility
- Rated for 500+ charge and discharge cycles
Note: This is a button top protected 18650 battery which is longer than a standard flat top unprotected 18650 battery.
Overview
The Nitecore NL1823 (also known as NL183) is a protected 18650 lithium-ion rechargeable battery designed for applications requiring controlled output and built-in safety protection. With a 2300mAh capacity and PCB-limited discharge current, this cell delivers consistent, dependable power while minimizing electrical risk during operation.
Applications / Uses
- High-output LED flashlights
- Portable lighting equipment
- Battery-powered electronics requiring protected cells
- Emergency and backup lighting systems
- Devices requiring button-top 18650 batteries
SPECIFICATIONS
| Manufacturer | Nitecore |
| Model | NL1823 (NL183) |
| Size | 18650 |
| Positive Terminal | Button Top |
| Nominal Capacity | 2300mAh |
| Continuous Discharge Rating | 6A Max Continuous (PCB Limited) |
| Nominal Voltage | 3.7V |
| Maximum Voltage | 4.2V |
| Protected | Yes, PCB |
| Rechargeable | Yes |
| Approx. Dimensions | 18.4mm × 69.6mm |
| Approx. Weight | 47.56g |
| Data Specification Sheet | Nitecore NL1823 Datasheet |
