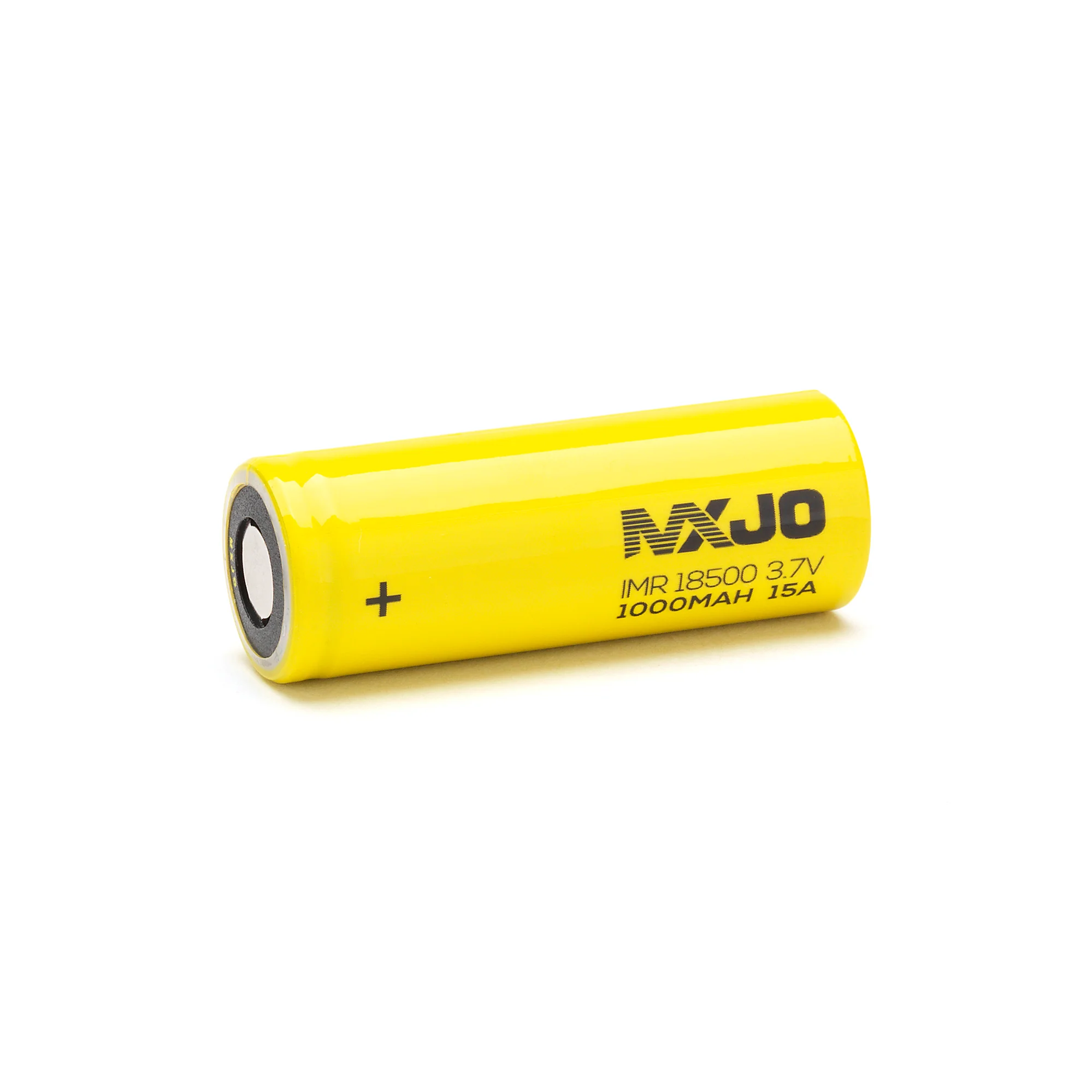

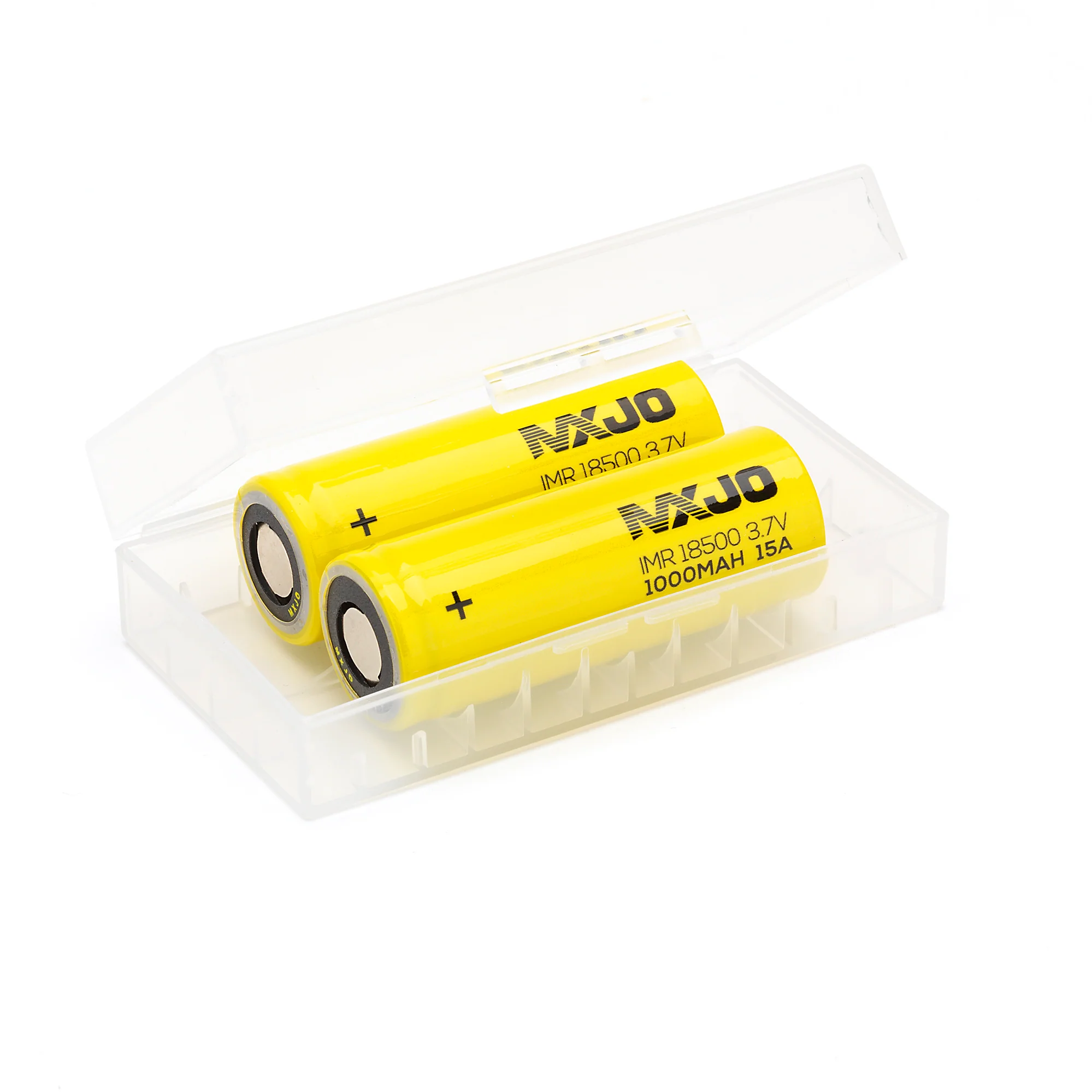

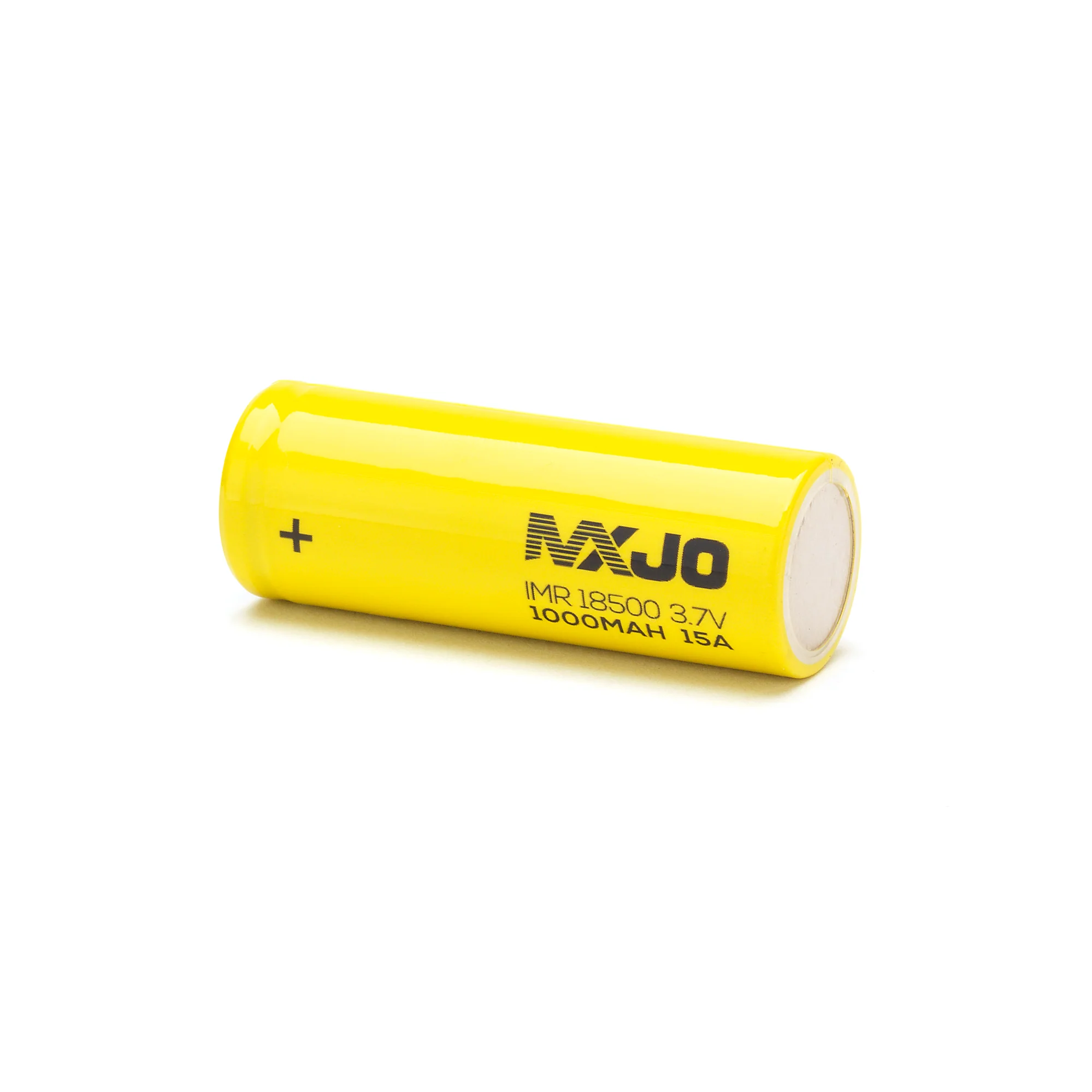

MXJO 18500 1000mAh Battery
Key Features
- Professional-Grade Cell: 1000mAh 18500 lithium-ion battery for compact assemblies.
- High Output Performance: Up to 10A maximum continuous discharge; 15A maximum pulse (manufacturer rated).
- Flat Top Format: Optimized for integrated battery systems and pack builds.
- Unprotected Configuration: Best for applications with system-level protection.
- Consistent Operation: Designed to perform from -10°C to 60°C.
Overview
The MXJO 18500 1000mAh Battery is a compact lithium-ion power solution built for professional applications requiring reliable output in a reduced size. With a nominal voltage of 3.7V and manufacturer-rated high discharge capability, it supports demanding loads in properly engineered devices and battery packs. This cell is unprotected and must be used with appropriate safeguards and battery management.
Applications / Uses
- OEM battery pack assemblies
- Commercial electronic devices
- Power systems with integrated protection circuitry
- Laboratory and R&D environments
- Specialized portable equipment
SPECIFICATIONS
| Manufacturer: | MXJO |
| Size: | 18500 |
| Positive Terminal: | Flat Top |
| Nominal Capacity: | 1000mAh |
| Continuous Discharge Rating (max): | 10A Maximum Continuous / 15A Maximum Pulse (Manufacturer Rated) |
| Nominal Voltage: | 3.7V |
| Maximum Voltage: | 4.2V |
| Protected: | No (Unprotected) |
| Rechargeable: | Yes |
| Approx. Dimensions: | 18.11mm x 49.94mm |
| Approx. Weight: | 33.1g (Max) |
