Key Features

• 314Ah LiFePO4 Capacity: Built for large-scale energy storage and extended runtime.
• 8,000-Cycle Lifespan: Optimized for long-term reliability.
• 0.5C Continuous / 1C Peak Output: Balanced power delivery for demanding systems.
• Ultra-Low Impedance: ≤0.18mΩ for efficient energy transfer.

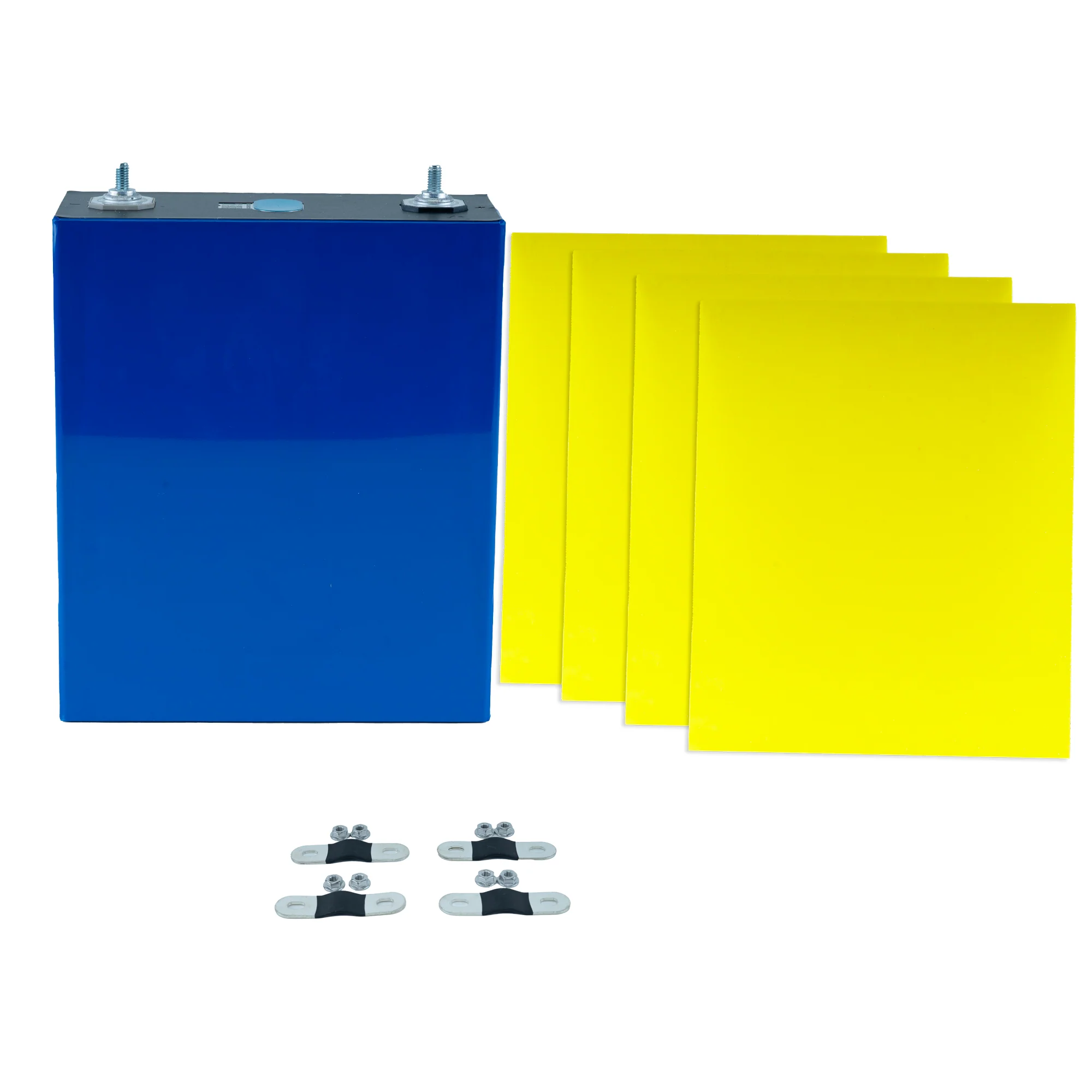

• Prismatic Cell with Busbars: Designed for robust, low-resistance pack assembly.

Overview

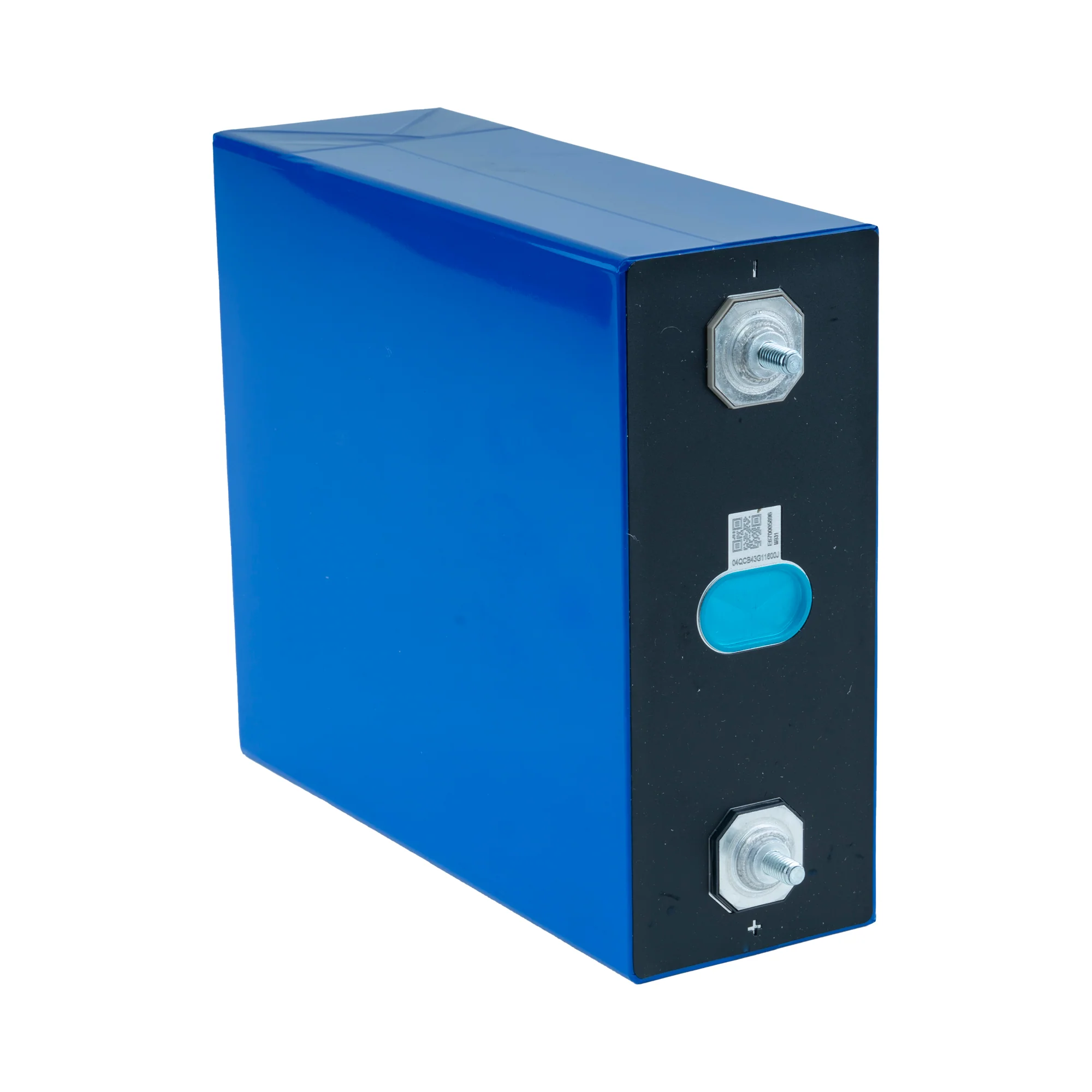

The EVE MB31 314Ah 3.2V prismatic lithium iron phosphate battery cell delivers high capacity, exceptional cycle life, and efficient power handling. Designed for large battery banks and long-term energy systems, this Grade A cell provides a dependable foundation for advanced energy storage solutions.

Applications / Uses

• High-capacity solar and renewable energy banks
• Electric mobility and transport platforms
• Backup and off-grid power systems
• Industrial energy storage installations
• Custom LiFePO4 battery assemblies

Specifications

Manufacturer:	EVE Energy
Model:	MB31
Form:	Prismatic
Nominal Capacity:	314Ah
Nominal Voltage:	3.2V
AC Impedance Resistance (1kHz):	≤0.18mΩ
Continuous Charge / Discharge Rating:	0.5C (157A)
Maximum Charge / Discharge (30s):	1C (314A)
Max Pulse (30s) Charge / Discharge Current:	2C / 2C
Cycle Life:	8,000 cycles
Protected:	No
Approx. Dimensions:	173.7mm x 71.7mm x 204.6mm
Approx. Weight:	5600g

Data Specification Sheet

---
