Key Features

• Ultra-High 304Ah Capacity: Delivers substantial energy storage for large-scale and high-demand power systems.
• Controlled Charge & Discharge Rates: Supports 0.5C continuous charging and 1C continuous discharging, with 2C pulse capability.
• Long Service Life: Rated for up to 3,500 charge/discharge cycles at 25°C, ensuring long-term reliability.
• Low Internal Resistance: AC impedance ≤0.5mΩ enhances efficiency and minimizes heat generation.
• Prismatic LiFePO4 Construction: Stable lithium iron phosphate chemistry housed in a robust prismatic format.

Overview

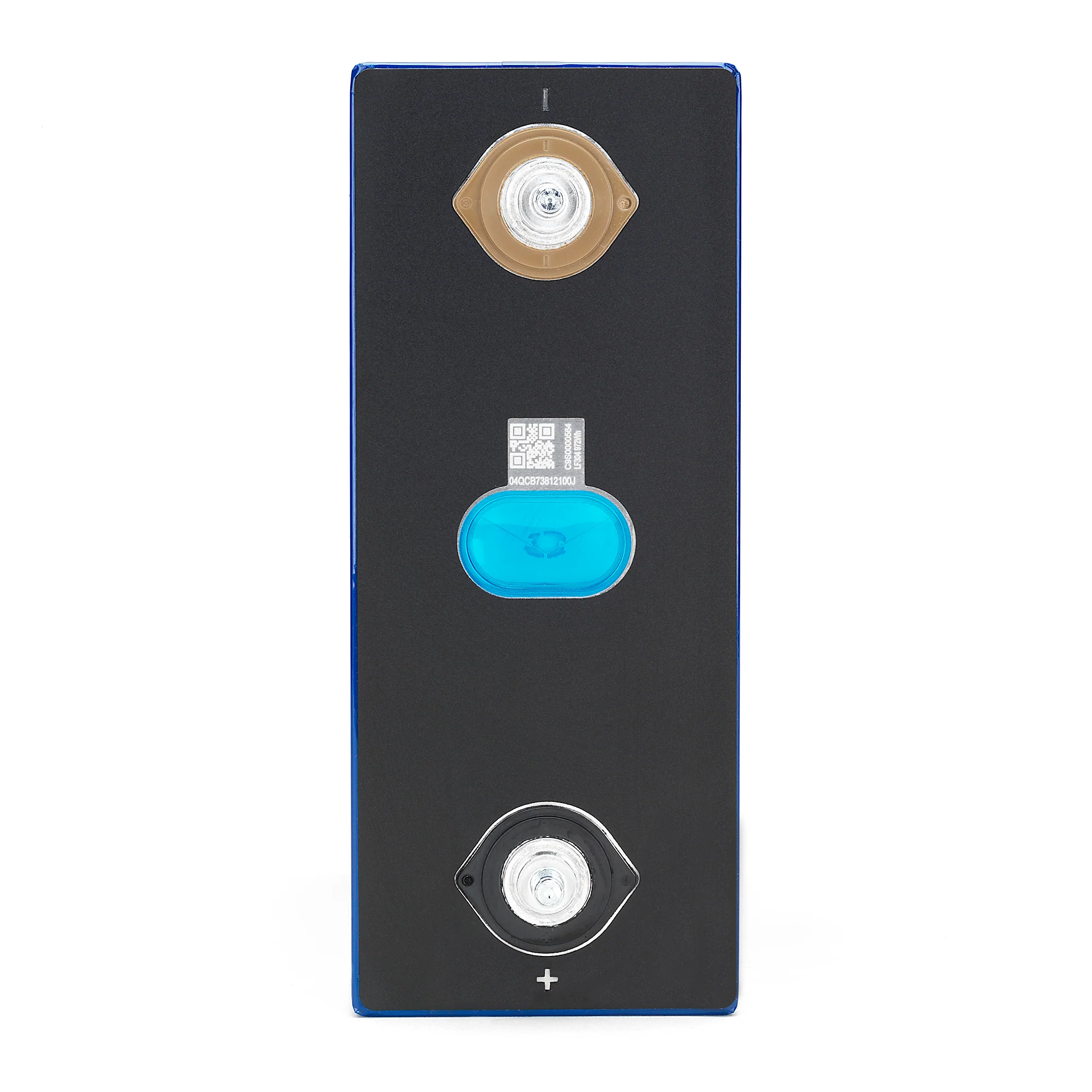

The EVE LF304 304Ah 3.2V LiFePO4 Prismatic Battery is engineered for high-capacity energy storage and demanding power applications. Built with Grade A lithium iron phosphate cells, it delivers stable voltage, excellent thermal characteristics, and long cycle life. With controlled charge and discharge rates and strong pulse capability, the LF304 is well suited for electric mobility platforms, renewable energy storage, and industrial battery systems.

Applications / Uses

• Solar and renewable energy storage systems
• Electric vehicle and mobility battery banks
• Backup and off-grid power solutions
• Industrial and commercial energy storage
• Custom high-capacity LiFePO4 battery pack builds

Specifications

Manufacturer:	EVE Energy
Model:	LF304
Form:	Prismatic
Nominal Capacity:	304Ah
Nominal Voltage:	3.2V
Cutoff Voltage (Charge / Discharge):	3.65V / 2.5V
Max Continuous Charge / Discharge Current:	0.5C / 1C
Max Pulse (30s) Charge / Discharge Current:	2C / 2C
Cycle Life:	3,500 cycles
Protected:	No
Approx. Dimensions:	173.5mm x 72.0mm x 208.8mm
Approx. Weight:	5490g

Data Specification Sheet

---
